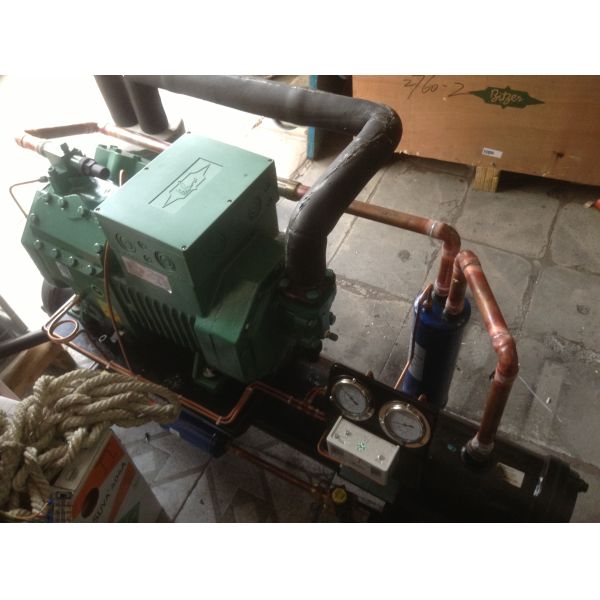

Freezer room 8HP R404a Refrigeration Condensing Units 4TES-9Y-40P 7kw 4TCS-8.2Y-40P

Model Number : 4TES-9Y/4TCS-8.2Y

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : discussed

Payment Terms : T/T or western Union

Supply Ability : 3,000pcs per month

Delivery Time : 7-10 working days after received your payment

Packaging Details : Carton box

Product Name : condensing unit

type : semi-hermetic condensing unit

Horse power : 8HP

Cooling Method : Direct Cooling

Application : Cold room

Brand : Global

Cool Type : Air-cooled

Structural Form : Horizontal

Color : Green

Lubricated : 3GS oil SUNISO SL32S

Contact Now

Freezer Room 8HP R404a Refrigeration Condensing Units 4TES-9Y-40P 7kw 4TCS-8.2Y-40P
8HP R404a Air-cooled Condensing Unit 4TES-9Y-40P, 7kw
  • Designed for use in cold rooms, fishing boats, and similar applications
  • Wide range of application capabilities
  • Original type suitable for low temperature operations
Product Overview

Compressor condensing unit is widely used for different temperature ranges, applicable in cold storage, chiller rooms, freezer rooms, and similar environments.

Key Features
  • Equipped with semi-hermetic compressor for reliable quality
  • Open type condensing unit for easy installation and maintenance
  • Air-cooled cooling type
  • Suitable for wide temperature range: +5°C to -5°C (middle and high), -15°C to -25°C (middle and low)
  • Copper tube and aluminum fin type heat exchanger
  • Available with refrigerant R404A and R22
Technical Specifications
  • Horse Power: 3-40HP
  • Voltage: 380V/50HZ/3Phase, 440-480V/60HZ/3PH
Performance Characteristics
  • High efficiency, good reliability, low noise, low vibration, no leakage
  • Wide range of application with multiple refrigerant options including R22, R134a, R404a, R407b, and R407c
  • Excellent performance with scientific structure design and precise processing
  • World-famous brand accessories including filters, pressure controllers, oil separators, gas separators, and Harris high quality welding rods
  • Reliable safety devices including motor protector and discharge temperature monitor
  • Both air-cooling and water-cooling condensing units available
Available Models (2HP to 50HP)
New Model Number Old Model Number Horse Power
2HES-12HC-1.21HP
2HES-22HC-2.22HP
2GES-22GC-2.22HP
2FES-22FC-2.22HP
2FES-32FC-3.23HP
2EES-22EC-2.22HP
2EES-32EC-3.23HP
2DES-22DC-2.22HP
2DES-32DC-3.23HP
2CES-32CC-3.23HP
2CES-42CC-4.24HP
4FES-34FC-3.23HP
4FES-54FC-5.25HP
4EES-44EC-4.24HP
4EES-64EC-6.26HP
4DES-54DC-5.25HP
4DES-74DC-7.27HP
4CES-64CC-6.26HP
4CES-94CC-9.29HP
4VES-74VCS-6.26HP
4VES-104VCS-10.210HP
4TES-94TCS-8.28HP
4TES-124TCS-12.212HP
4PES-124PCS-10.210HP
4PES-154PCS-15.215HP
4NES-144NCS-12.212HP
4NES-204NCS-20.220HP
4JE-154J-13.2*13HP
4JE-224J-22.2*22HP
4HE-184H-15.2*15HP
4HE-254H-25.2*25HP
4GE-234G-20.2*20HP
4GE-304G-30.2*30HP
Detailed Technical Specifications
Model Horse Power Displacement (50hz) m³/h Quantity of Cylinder * Diameter * Stroke (mm)
2DC-2.2213.52*50*39.3
2DC-3.2313.52*50*39.3
2CC-3.2316.22*55*39.3
2CC-4.2416.22*55*39.3
4DC-5.2526.844*50*39.3
4DC-7.2726.844*50*39.3
4CC-6.2632.484*55*39.3
4CC-9.2932.484*55*39.3
4TCS-8.2841.334*60*42
4TCS-12.21241.334*60*42
4PCS-10.21048.54*65*42
4PCS-15.21548.54*65*42
4NCS-12.21256.254*70*42
4NCS-20.22056.254*70*42
4H-15.21573.64*70*55
4H-25.22573.64*70*55
4G-20.22084.54*75*55
4G-30.23084.54*75*55
