Zh48kve-Twd-526 R407c Scroll Compressors For Heat Pump

  • 1
  • 2
  • 3

Brand Name : copeland

Model Number : Zh48kve-Twd

Certification : CE

Place of Origin : china

MOQ : 1pcs

Price : community

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs /week

Delivery Time : 5-8 days after payment

Packaging Details : wooden box

Type : Refrigerator compressor

Displacement [m³/h : 2

Sound power [dBA : 2

Net Weight [kg : 2

Gross Weight [kg : 2

Oil charge [dm³ : 2

Power supply [V/~/Hz : 2

Winding resistance [Ω : 2

Contact Now

ZH48KVE-TWD-526 R407C Scroll Compressors For Heat Pump
Product Overview

Hermetic scroll compressors model ZH48KVE-TWD-526 designed specifically for heat pump applications with R407C refrigerant.

Technical Specifications
Parameter Value
Displacement 42.8 m³/h
Sound Power 86 dBA
Sound Power with Sound Shell 76 dBA
Sound Pressure Level 75 dB
Net Weight 112 kg
Gross Weight 119 kg
Oil Charge 4.1 dm³
Maximum High Pressure 32 bar
Maximum Standstill Pressure 22.6 bar
Minimal Lowside Temperature -35°C
Maximum Lowside Temperature 50°C
PED Category 2
Electrical Data
Parameter Value
Power Supply 380-420V/3/50Hz
Locked Rotor Current 198 A
Max. Operating Current 32 A
Winding Resistance 0.7 Ω
Connections
Connection Type Size
Suction Connection with Supplied Sleeve 1 5/8"
Discharge Connection with Supplied Sleeve 1 1/8"
Zh48kve-Twd-526 R407c Scroll Compressors For Heat Pump
Key Features
  • Scroll axial and radial compliance for high reliability
  • High efficiency and increased heating capacity
  • High water temperature for all applications
  • Low sound and low vibration level
  • Tandem combination for superior seasonal efficiency

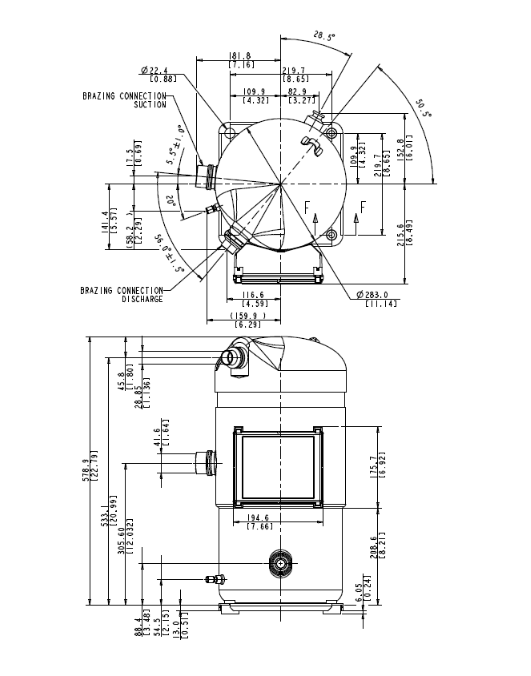

Technical Drawings
Zh48kve-Twd-526 R407c Scroll Compressors For Heat Pump

Compatible models include ZH12K4E to ZH45K4E, ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582, ZH04K1P to ZH19K1P, and others.

Refrigerant Options: R134a, R407C, R410a

Quiet Operation: ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.

High Efficiency: ZH heating compressors with Enhanced Vapor Injection have been further optimized to ensure best-in-class performances in dedicated heating applications. This technology allows replacement of traditional boilers in new building and retrofit applications, without the need of substituting existing heating elements in the building.

ZH Scroll heating compressors with Enhanced Vapor Injection have an additional port to inject vapor within the compression process. This improves system performances by increasing the heating capacity for a given compressor displacement. Additional benefits include the reduction of gas discharge temperatures.

Our Main Compressor Lines
  • Compressors
  • Scroll compressors: CR, VR, ZB, ZR, ZF, ZP SERIES
  • Semi-hermetic compressors: DL, D2, D4, D6, D8 SERIES
  • Performer compressors: SM, SZ, SH SERIES
  • Commercial compressors: FR, SC SERIES
  • Piston compressors: MT, MTZ, NTZ, MPZ SERIES
